CPTMS: Cal Poly (simulated) Traffic Management System

Currently a central component of the TMC Simulator is the ATMS, Advanced Traffic Management System, which consists of a server and client. The ATMS allows the trainee to view the traffic flow throughout the highway network that is the focus of the simulation session. Different colored dots on a highway schematic diagram indicate areas of traffic congestion.

The ATMS server is an aging piece of hardware and one that we have little documentation about. We have a goal to replace the ATMS with an alternative. Though the ATMS is the same as actually used in numerous Cal Trans districts, for the purpose of the simulation a high accuracy reproduction could substitute.

CPTMS is our substitute for the ATMS.

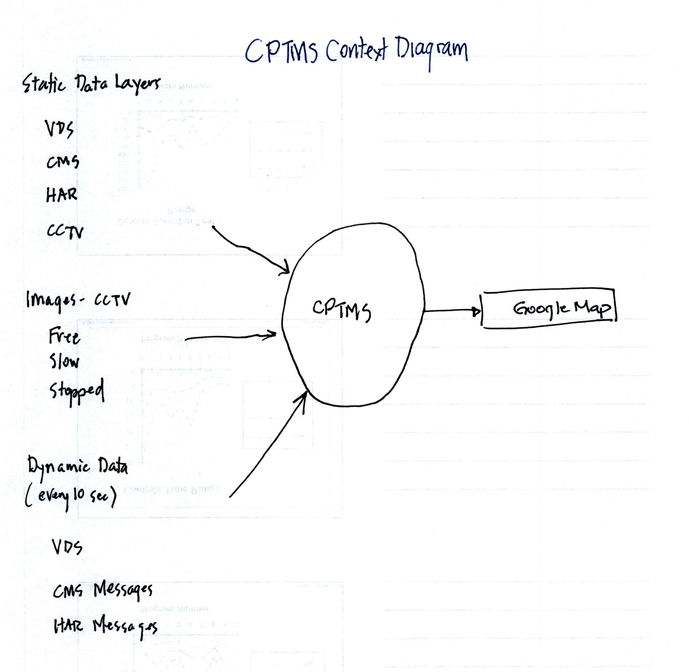

The components of the CPTMS are the postmile file, the Traffic Model Manager (within the CADServer), the highways.json file, and the CPTMS html file that contains the javascript code for manipulating a Google Map.

The key data used by the CPTMS is the postmile file. It is found in the config folder. Of significance is that it lists postmile locations of VDS in the network and gives the latlong for each so its location can be plotted on a Google Map.

Directions for creating a postmile file.

Browse to  pems.dot.ca.gov. In the left margin under "Tools" select "Data Clearinghouse".

In the selection boxes at the top specify "Type: Station Metadata" and desired district number, then click Submit.

The report page which appears shows two columns, Field Specification and Available Files. The former describes what is in each field of the data file. In the Available Files column select the most recently dated file. Download and save to your local computer as d05_vds_meta.csv (changing the extension from ".txt" to ".csv"). (For this exercise we'll pretend to be working with District 5 and name the files accordingly).

Open the file in Libre Office Calc (or other spreadsheet). Delete unneeded columns, retaining: Fwy, Dir, State_PM, Latitude, Longitude, and Name. Save as .csv. Open in a text editor and remove the first row containing column headers. Also remove quotation marks.

Some postmiles files have duplicate entries, that is, they have the same postmile but slightly different street names. It is desirable to remove these duplicate entries. Run the python script that lets you manually select which one to keep.

python showDupPostmiles.py d`05_vds_meta`.csv

The results are saved in "uniqFile" which you should rename, to something like: d05_vds_uniq.csv

(You can sort this file if you want a version that's easier to inspect or lookup by postmil).

The next step is to preprocess the csv file which creates perpendicular unit vectors for each postmile:

Open "prep_postmiles.py" in a text editor and modify the name of the postmileFile string to be the name of your file.

Run it:

python prep_postmiles.py

Observe output, correct any bad data in the file that causes the program to crash.

When done, run it and redirect output to a new file:

python prep_postmiles.py > d12_vds_uniq_prepped.csv

Sort the result

sort -k1n -k2,2 -k3,3g d12_vds_uniq_prepped.csv > d12_vds_uniq_sorted_prepped.csv

Run the csv to json converter:

./convertCSVtoJSON.bash d12_vds_uniq_sorted_prepped.csv > highways.json

Edit the json file to remove an extraneous comma after the last feature. The last three lines should appear as:

  }
 ]
}

Make a copy the CPTMS html file, and open it in a text editor. Specify the correct center location for the target district.

    var centerPoint = {lat: 33.687228, lng: -117.872148};

Load the CPTMS html file into a browser and observe the results.

Use unix "cut" to remove the last column of the csv file.

cut -f1-6 -d"," d12_vds_uniq_prepped.csv > postmile_coordinates.txt

Move postmile_coordinates.txt to the TMC config folder.

mv postmile_coordinates.txt trunk/config/vds_data
